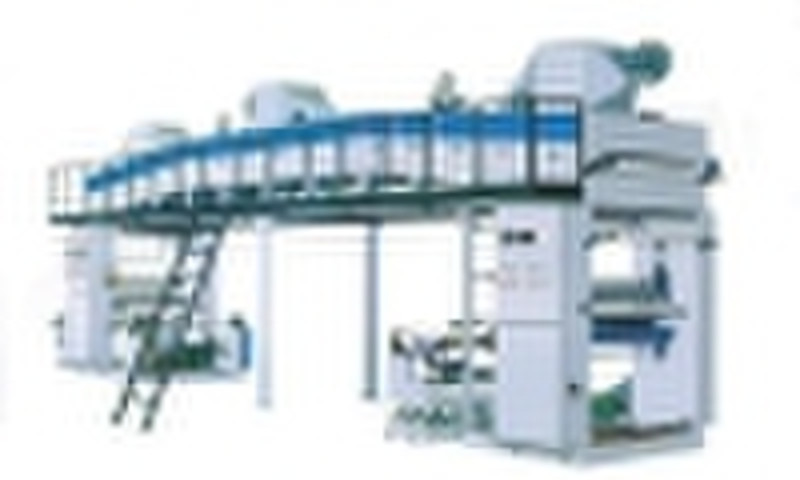

Dry Laminating Machine

Lamination machine USE By coating, it laminates rolling plastic film with other basic materials. The laminated material is water-proof, leakage-proof, cookable,with good mechanical ruggedness and thermal sealing nature. Feature: with imported frequency double motors synchronous control, the material unwinding rack is equipped with automatic photoelectric rectifying controlling system and the electricity heat is controlled in pieces. It is reasonably desiened, attractive and easy to operate.Main Technical ParametersModelYAD-800AYAD-1100Alaminating layers2 layer2 layerlaminating width800mm1100mmdiameter of feedable material600mm600mmadjustable linear velocity of lamination80-120m/min80-120 m/minmax.adjustable temp of oven8080max.adjustable temp.of thermal drum7070power23kw30kwweight4000kg4500kgoverall dimensions(L × W × H)7500 × 1400 × 2500mm7500 × 1700 × 2500mm
