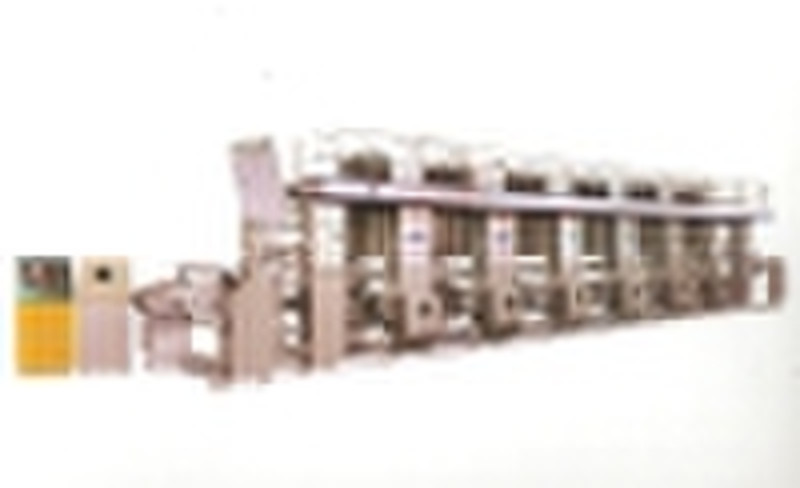

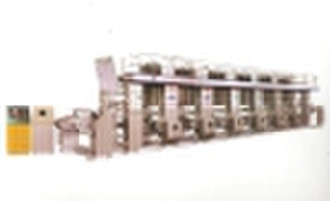

Rotogravure color printing machine

Printing machine Feature: 1.360-degree printing plate aligning device, easy operation. 2. Dual-drying tunnel far infrared fire tube heating system. 3 .Magnetic powder brake control for unreeling tension system, reeling with moment motor. 4. Reeling and unreeling at dual stations, semi-automatic material change without machine halt. 5 .One-off printing on both sides. Main Technical ParametersModelYAD-800YAD-1100printing width800mm1100mmprinting speed80-120m/min80-120m/mindiameter of printing plate100-350mm100-350mmdiameter of rolling material600mm600mmtransverse adjustable range30mm30mmlongitudinal adjustable range(degree)100100registration precision±0.15mm±0.15mmtotal power85kw95kwweight9000kg10000kgoverall dimensions(L× W×H)10500×2200 ×2800mm10500×2200×2800mm
